Introduction

In this post, I have detailed the functionalities of AWS Glue and PySpark, which are essential for building AWS pipelines and crafting AWS Glue PySpark scripts. Additionally, I’ve provided AWS Glue PySpark examples to illustrate how these tools can be applied in practical data processing scenarios.

AWS Glue is a fully managed extract, transform, and load (ETL) service to process large amounts of datasets from various sources for analytics and data processing.

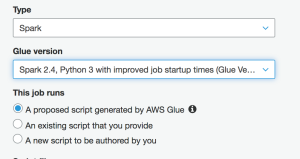

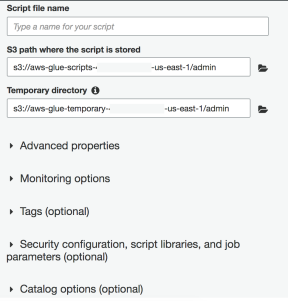

While creating the AWS Glue job, you can select between Spark, Spark Streaming, and Python shell. These jobs can run a proposed script generated by AWS Glue, or an existing script that you provide or a new script authored by you. Also, you can select different monitoring options, job execution capacity, timeouts, delayed notification threshold, and non-overridable and overridable parameters.

What is PySpark?

PySpark is a Python tool that helps handle big data using Apache Spark. When combined with AWS Glue PySpark and GlueContext, it becomes easier to work with data in the AWS environment for tasks like data transformation and processing.

GlueContext: AWS Glue & PySpark Features and functionalities

Recently AWS recently launched Glue version 2.0 which features 10x faster Spark ETL job start times and reducing the billing duration from a 10-minute minimum to 1-minute minimum.

With AWS Glue you can create development endpoint and configure SageMaker or Zeppelin notebooks to develop and test your Glue ETL scripts.

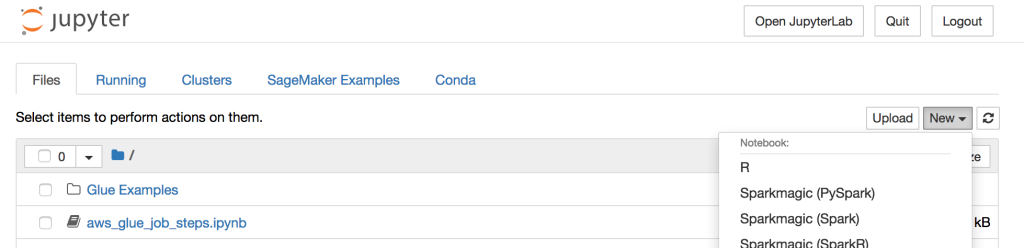

I create a SageMaker notebook connected to the Dev endpoint to author and test the ETL scripts. Depending on your preferred language, you can spin up the notebook using GlueContext and Glue PySpark functionalities.

Now, let’s talk about some specific features and functionalities in AWS Glue and PySpark which can be helpful.

1. Spark DataFrames

Spark DataFrame is a distributed collection of data organized into named columns. It is conceptually equivalent to a table in a relational database. You can create DataFrame from RDD, from file formats like csv, json, parquet.

With SageMaker Sparkmagic(PySpark) Kernel notebook, the Spark session is automatically created.

To create DataFrame –

# from CSV files
S3_IN = "s3://mybucket/train/training.csv"csv_df = (
    spark.read.format("org.apache.spark.csv")
    .option("header", True)
    .option("quote", '"')
    .option("escape", '"')
    .option("inferSchema", True)
    .option("ignoreLeadingWhiteSpace", True)
    .option("ignoreTrailingWhiteSpace", True)
    .csv(S3_IN, multiLine=False)
)# from PARQUET files
S3_PARQUET="s3://mybucket/folder1/dt=2020-08-24-19-28/"df = spark.read.parquet(S3_PARQUET)# from JSON files
df = spark.read.json(S3_JSON)# from multiline JSON file
df = spark.read.json(S3_JSON, multiLine=True)

2. GlueContext

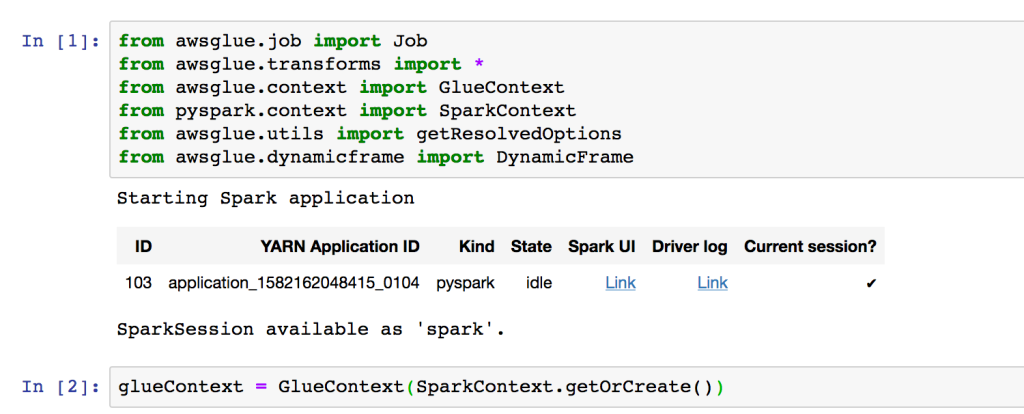

GlueContext is the entry point for reading and writing DynamicFrames in AWS Glue. It wraps the Apache SparkSQL SQLContext object providing mechanisms for interacting with the Apache Spark platform.

from awsglue.job import Job
from awsglue.transforms import *
from awsglue.context import GlueContext
from pyspark.context import SparkContext
from awsglue.utils import getResolvedOptions
from awsglue.dynamicframe import DynamicFrameglueContext = GlueContext(SparkContext.getOrCreate())

3. DynamicFrame

AWS Glue DynamicFrames are similar to SparkSQL DataFrames. It represents a distributed collection of data without requiring you to specify a schema. Also, it can be used to read and transform data that contains inconsistent values and types.

DynamicFrame can be created using the following options –

• create_dynamic_frame_from_rdd — created from an Apache Spark Resilient Distributed Dataset (RDD)
• create_dynamic_frame_from_catalog — created using a Glue catalog database and table name
• create_dynamic_frame_from_options — created with the specified connection and format. Example — The connection type, such as Amazon S3, Amazon Redshift, and JDBC

DynamicFrames can be converted to and from DataFrames using .toDF() and fromDF(). Use the following syntax-

#create DynamicFame from S3 parquet files
datasource0 = glueContext.create_dynamic_frame_from_options(
            connection_type="s3",
            connection_options = {
                "paths": [S3_location]
            },
            format="parquet",
            transformation_ctx="datasource0")#create DynamicFame from glue catalog
datasource0 = glueContext.create_dynamic_frame.from_catalog(
           database = "demo",
           table_name = "testtable",
           transformation_ctx = "datasource0")#convert to spark DataFrame
df1 = datasource0.toDF()#convert to Glue DynamicFrame
df2 = DynamicFrame.fromDF(df1, glueContext , "df2")

You can read more about this here.

4. AWS Glue Job Bookmark

AWS Glue Job bookmark helps process incremental data when rerunning the job on a scheduled interval, preventing reprocessing of old data.

You can read more about this here. Also, you can read this.

5. Write out data

The DynamicFrame of the transformed dataset can be written out to S3 as non-partitioned (default) or partitioned. “partitionKeys” parameter can be specified in connection_option to write out the data to S3 as partitioned. AWS Glue organizes these datasets in Hive-style partition.

In the following code example, AWS Glue DynamicFrame is partitioned by year, month, day, hour, and written in parquet format in Hive-style partition on to S3.

s3://bucket_name/table_name/year=2020/month=7/day=13/hour=14/part-000–671c.c000.snappy.parquet

S3_location = "s3://bucket_name/table_name"datasink = glueContext.write_dynamic_frame_from_options(
frame= data,
connection_type="s3",
connection_options={
"path": S3_location,
"partitionKeys": ["year", "month", "day", "hour"]
},
format="parquet",
transformation_ctx ="datasink")

You can read more about this here.

6. “glueparquet” format option

glueparquet is a performance-optimized Apache parquet writer type for writing DynamicFrames. It computes and modifies the schema dynamically.

datasink = glueContext.write_dynamic_frame_from_options(
               frame=dynamicframe,
               connection_type="s3",
               connection_options={
                  "path": S3_location,
                  "partitionKeys": ["year", "month", "day", "hour"]
               },
               format="glueparquet",
               format_options = {"compression": "snappy"},
               transformation_ctx ="datasink")

You can read more about this here.

7. S3 Lister and other options for optimizing memory management

AWS Glue provides an optimized mechanism to list files on S3 while reading data into DynamicFrame which can be enabled using additional_options parameter “useS3ListImplementation” to true.

You can read more about this here.

8. Purge S3 path

purge_s3_path is a nice option available to delete files from a specified S3 path recursively based on retention period or other available filters. As an example, suppose you are running AWS Glue job to fully refresh the table per day writing the data to S3 with the naming convention of s3://bucket-name/table-name/dt=<data-time>. Based on the defined retention period using the Glue job itself you can delete the dt=<date-time> s3 folders. Another option is to set the S3 bucket lifecycle policy with the prefix.

#purge locations older than 3 days
print("Attempting to purge S3 path with retention set to 3 days.")
glueContext.purge_s3_path(
    s3_path=output_loc,
    options={"retentionPeriod": 72})

You have other options like purge_table, transition_table, and transition_s3_path also available. The transition_table option transitions the storage class of the files stored on Amazon S3 for the specified catalog’s database and table.

You can read more about this here.

9. Relationalize Class

Relationalize class can help flatten nested json outermost level.

You can read more about this here.

10. Unbox Class

The Unbox class helps the unbox string field in DynamicFrame to specified format type(optional).

You can read more about this here.

11. Unnest Class

The Unnest class flattens nested objects to top-level elements in a DynamicFrame.

root
|-- id: string
|-- type: string
|-- content: map
|    |-- keyType: string
|    |-- valueType: string

With content attribute/column being map Type, we can use the unnest class to unnest each key element.

unnested = UnnestFrame.apply(frame=data_dynamic_dframe)
unnested.printSchema()root
|-- id: string
|-- type: string
|-- content.dateLastUpdated: string
|-- content.creator: string
|-- content.dateCreated: string
|-- content.title: string

12. printSchema()

To print the Spark or Glue DynamicFrame schema in tree format use printSchema().

datasource0.printSchema()root
|-- ID: int
|-- Name: string
|-- Identity: string
|-- Alignment: string
|-- EyeColor: string
|-- HairColor: string
|-- Gender: string
|-- Status: string
|-- Appearances: int
|-- FirstAppearance: choice
|    |-- int
|    |-- long
|    |-- string
|-- Year: int
|-- Universe: string

13. Fields Selection

select_fields can be used to select fields from Glue DynamicFrame.

# From DynamicFramedatasource0.select_fields(["Status","HairColor"]).toDF().distinct().show()

To select fields from Spark Dataframe to use “select” –

# From Dataframedatasource0_df.select(["Status","HairColor"]).distinct().show()

14. Timestamp

For instance, the application writes data into DynamoDB and has a last_updated attribute/column. But, DynamoDB does not natively support date/timestamp data type. So, you could either store it as String or Number. In case stored as a number, it’s usually done as epoch time — the number of seconds since 00:00:00 UTC on 1 January 1970. You could see something like “1598331963” which is 2020–08–25T05:06:03+00:00 in ISO 8601.

You can read more about Timestamp here.

How can you convert it to a timestamp?

When you read the data using AWS Glue DynamicFrame and view the schema, it will show it as “long” data type.

root
|-- version: string
|-- item_id: string
|-- status: string
|-- event_type: string
|-- last_updated: long

To convert the last_updated long data type into timestamp data type, you can use the following code-

import pyspark.sql.functions as f
import pyspark.sql.types as tnew_df = (
    df
        .withColumn("last_updated", f.from_unixtime(f.col("last_updated")/1000).cast(t.TimestampType()))
)

15. Temporary View from Spark DataFrame

In case you want to store the Spark DataFrame as a table and query it using spark SQL, you can convert the DataFrame into a temporary view that is available for only that spark session using createOrReplaceTempView.

df = spark.createDataFrame(
    [
        (1, ['a', 'b', 'c'], 90.00),
        (2, ['x', 'y'], 99.99),
    ],
    ['id', 'event', 'score']
)df.printSchema()
root
 |-- id: long (nullable = true)
 |-- event: array (nullable = true)
 |    |-- element: string (containsNull = true)
 |-- score: double (nullable = true)df.createOrReplaceTempView("example")spark.sql("select * from example").show()+---+---------+-----+
| id|    event|score|
+---+---------+-----+
|  1|[a, b, c]| 90.0|
|  2|   [x, y]|99.99|
+---+---------+-----+

16. Extract element from ArrayType

Suppose from the above example, you want to create a new attribute/column to store only the last event. How would you do it?

You use the element_at function. It returns an element of the array at the given index in extraction if col is an array. Also, it can be used to extract the given key in extraction if col is a map.

import pyspark.sql.functions as element_atnewdf = df.withColumn("last_event", element_at("event", -1))newdf.printSchema()
root
 |-- id: long (nullable = true)
 |-- event: array (nullable = true)
 |    |-- element: string (containsNull = true)
 |-- score: double (nullable = true)
 |-- last_event: string (nullable = true)newdf.show()
+---+---------+-----+----------+
| id|    event|score|last_event|
+---+---------+-----+----------+
|  1|[a, b, c]| 90.0|         c|
|  2|   [x, y]|99.99|         y|
+---+---------+-----+----------+

17. explode

The explode function in PySpark is used to explode array or map columns in rows. For example, let’s try to explode “event” column from the above example-

from pyspark.sql.functions import explodedf1 = df.select(df.id,explode(df.event))df1.printSchema()
root
 |-- id: long (nullable = true)
 |-- col: string (nullable = true)df1.show()
+---+---+
| id|col|
+---+---+
|  1|  a|
|  1|  b|
|  1|  c|
|  2|  x|
|  2|  y|
+---+---+

18. getField

In a Struct type, if you want to get a field by name, you can use “getField”. The following is its syntax-

import pyspark.sql.functions as f
from pyspark.sql import Rowfrom pyspark.sql import Row
df = spark.createDataFrame([Row(attributes=Row(Name='scott', Height=6.0, Hair='black')),
                            Row(attributes=Row(Name='kevin', Height=6.1, Hair='brown'))]
)df.printSchema()
root
 |-- attributes: struct (nullable = true)
 |    |-- Hair: string (nullable = true)
 |    |-- Height: double (nullable = true)
 |    |-- Name: string (nullable = true)df.show()
+-------------------+
|         attributes|
+-------------------+
|[black, 6.0, scott]|
|[brown, 6.1, kevin]|
+-------------------+df1 = (df
      .withColumn("name", f.col("attributes").getField("Name"))
      .withColumn("height", f.col("attributes").getField("Height"))
      .drop("attributes")
      )df1.show()
+-----+------+
| name|height|
+-----+------+
|scott|   6.0|
|kevin|   5.1|
+-----+------+

19. startswith

In case, you want to find records based on a string match you can use “startswith”.

In the following example I am searching for all records where value for description column starts with “[{“.

import pyspark.sql.functions as fdf.filter(f.col("description").startswith("[{")).show()

20. Extract year, month, day, hour

One of the common use cases is to write the AWS Glue DynamicFrame or Spark DataFrame to S3 in Hive-style partition. To do so you can extract the year, month, day, hour, and use it as partitionkeys to write the DynamicFrame/DataFrame to S3.

import pyspark.sql.functions as fdf2 = (raw_df
        .withColumn('year', f.year(f.col('last_updated')))
        .withColumn('month', f.month(f.col('last_updated')))
        .withColumn('day', f.dayofmonth(f.col('last_updated')))
        .withColumn('hour', f.hour(f.col('last_updated')))
        )

5 AWS glue pyspark examples

Examples of AWS Glue and PySpark functionalities include:

• Creating Spark DataFrames for data manipulation.
• Using GlueContext for seamless integration with AWS Glue services.
• Writing data to different formats with the “glueparquet” option.
• Optimizing memory management with S3 Lister.
• Performing data transformation tasks like selecting specific fields and extracting timestamps.

Conclusion

In summary, PySpark is great for handling big data, especially when paired with GlueContext in AWS Glue. It has handy features like Spark DataFrames and tools for managing data effectively. AWS Glue PySpark examples show how it can be used for various data tasks easily.
